XT Square

XT Square

0.00

by DG Lights


Product Description

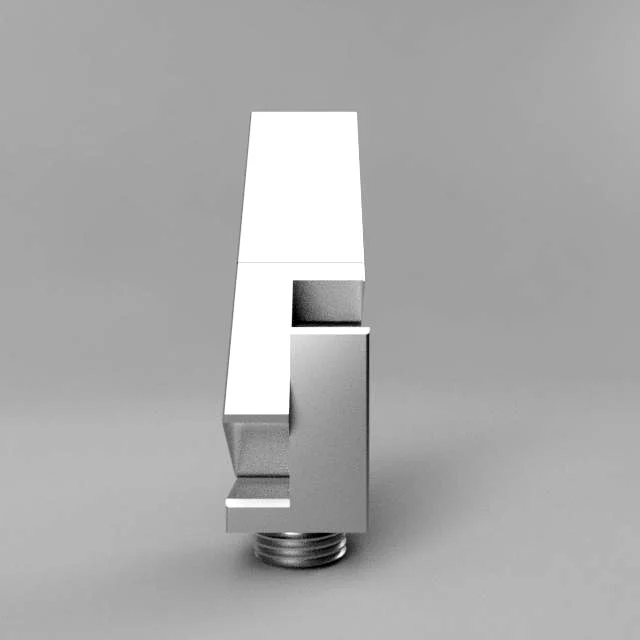

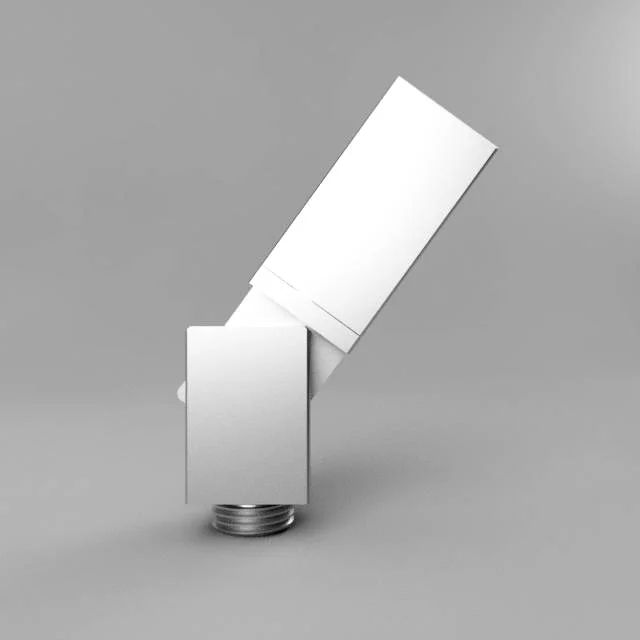

The XTSQ - Straight lines. The XTSQ’s light source is the patent-pending CR8 LED module. This is the only LED module to easily and quickly interface directly to its host fixture without mounting hardware or o-rings to secure. The metal on metal compression heatsink efficiently moves heat away from the module through the fixture to the cooler surrounding air. Threadless optic holder makes for quick and easy beam changes night or day. All components are precision CNC machined from solid billet materials offering superior strength and fit over cast parts.

LED Module
CR8 Quick Change™ Compression Ring Heatsink
Dimming
≤10% Lutron
Lumens
350 Maximum
Voltage
8-15Vac/24dc
Power Consumption
5 Watt Maximum
Light Colour
2700K / 3000K / 4000K / 5500K
Beam Spreads
Narrow, Medium, Wide, Flood
Available in
Aluminum, Brass, Copper
Ingress Protection
IP66
Remote Low Voltage Transformer Required
Made in U.S.A

Downloads

Datasheet
IES Files, 2D & 3D Files - Contact Us
