GL2

GL2

0.00

by DG Lights


Product Description

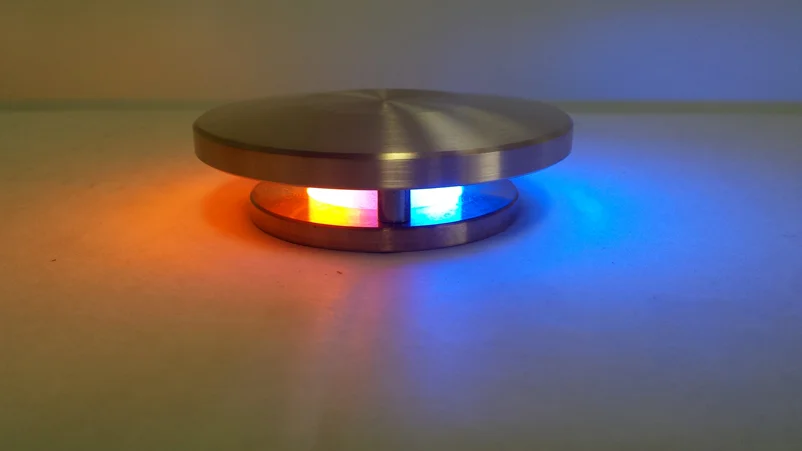

Versatile Recessed LED Luminaire.

The GL2 is a recessed fixture intended for low level and decorative illumination. Unlike competing designs the GL2’s patent pending quick change CR Module is aimed directly towards the intended surface and not inefficiently redirected by an internal reflector. This significantly improves fixture efficacy, reducing wattage and providing superior light output and coverage. The CR Module is the only LED module that requires no mounting hardware to interface with fixture. The absence of mounting hardware reduces service/upgrade time to merely seconds. The interface between CR Module and fixture body provides critical heat transfer away from LED.

The GL2 is completey sealed against moisture intrusion and can be installed in any orientation.
The GL2's rugged construction is engineered for the harshest environments. Constructed from solid billet materials the GL2's body can handle anything maintenance might bring its way. Completely sealed by dual o-ring compression. Suitable for wet location.

LED Modules
Quick Change™ C-Socket™ CR LED Module
Lumens
120
Voltage
7-15Vac/dc
Wattage
2W Maximum
Colour
2700K / 3000K / 4000K / 5500K / Amber / Blue / Green
Beam Spread
160
Available Materials
6061-T6 Aluminum, Brass, Copper
Ingress Protection
IP66

Remote Transformer Required
Made in U.S.A

Downloads

Datasheet
IES Files, 2D & 3D Files - Contact Us
