by Wila

Luminaires for Handrails and more

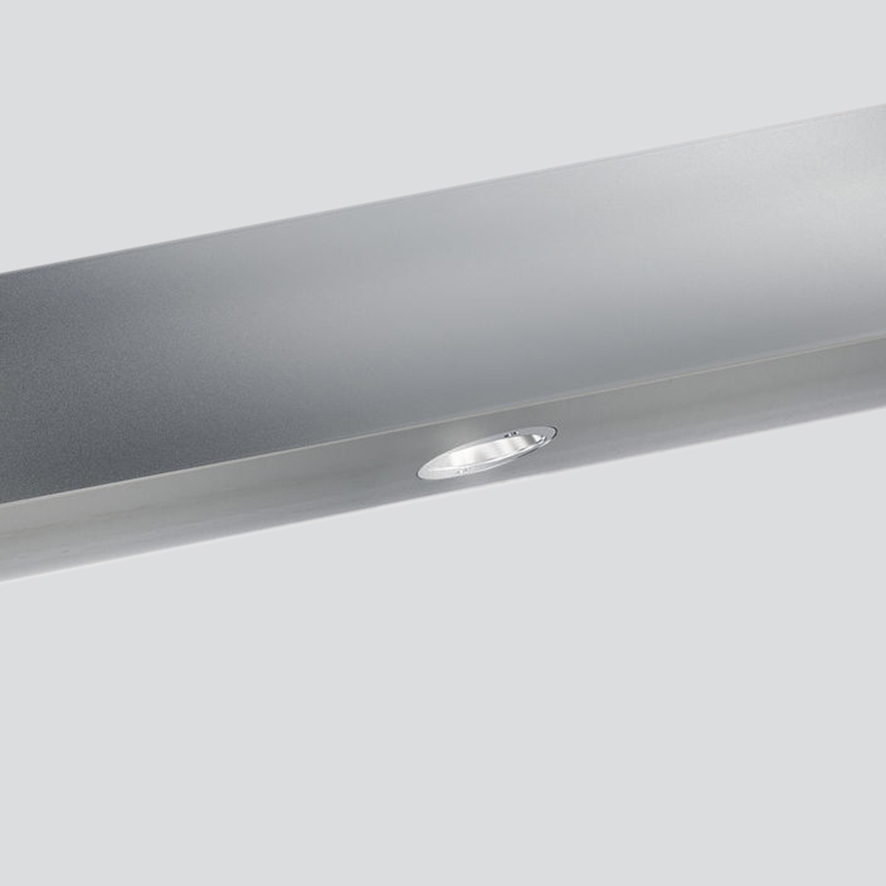

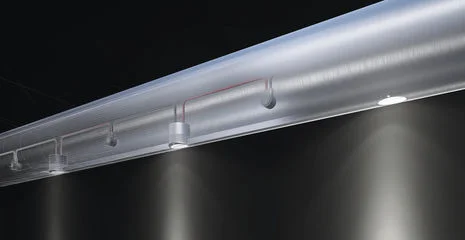

The LED lighting system was specifically developed for flush-mounted integration into the profile bottom of handrails. Because of individually arranged LED units, the variable system can be used both with straight lines and all radii. Retrofitting is also possible.

Retrofitting
On site possible
Corrosion-protected
Stainless steel housing
Suitable for outdoor areas
Mode of protection IP66
High Luminous Output
LED Puck 1.5 W with 3000/4000 K
Long Service Life
50.000 h (L70)

Vandalism and Theft Protection
Depending on the design, the LED is protected against destruction by a lens of hardened polycarbonate. The resilience of all visible parts corresponds to impact resistance class IK 10 (EN 62262). A special tool for removing the LED Pucks provides protection against theft.
Flexible Application
Versions suitable for round and rectangular handrails of metal from 38 up to 100 mm diameter. Variety of lighting geometries are available.
