Gunn Large Wash

Gunn Large Wash

0.00

by Lightworks



Professional LED fixed downlight with dual reflector system to provide smooth glare-free output. Available in 15W, 21W and 35W versions. Multi-chip technology means constant colour temperature. Assembled in Australia from corrosion resistant componentry. Easily customised.

Application
General Illumination
Trim Colours
White, Black, Custom Colours

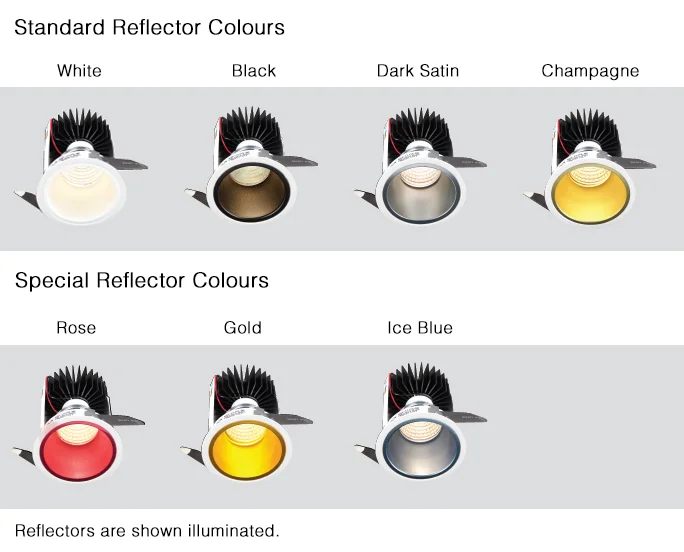

Reflector Finishes
Gold, Mustard, Black, Dark Satin, Rose,  Champagne,  White, Ice Blue
Materials
Anodised aluminium reflector and heatsink.
304 stainless steel fascia
Input Power
240V 350mA (15W) driver c/w flex and plug
240V 500mA (21W) driver c/w flex and plug
240V 900mA (35W) driver c/w flex and plug
Power Consumption
15W, 21W and 35W
Colour Temperature Available
2700K, 3000K, 4000K
Lumen Output
(15W) 2700K - 900 lm
(15W) 3000K - 1000 lm
(15W) 4000K - 1100 lm
(21W) 2700K - 1200 lm
(21W) 3000K - 1363 lm
(21W) 4000K - 1500 lm
(35W) 2700K - 2250 lm
(35W) 3000K - 2500 lm
(35W) 4000K - 2750 lm
CRI
92
Lumen Maintenance
70% at 50 000 hrs
Dimming
Leading/Trailing Edge (Standard)
Dali Dim
1-10V DC Control
Cut Out
145 mm

Downloads

Datasheet
IES Files

2D & 3D Files - Contact Us
