LED Curve Tube (Side View) Accessories

Product Details

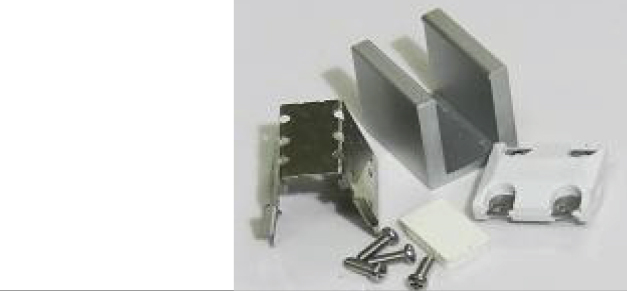

DIY IP67 Front Connector Kit
Connection Side: RIght
Cable Length: 600m
Detailed Items:
1 x front connector, 1 x rubber gasket, 1 x stainless anti-slide clip, 1 x aluminium clip, 4 x 304 stainless screws

DIY IP67 Front Connector Kit
Connection Side: Left
Cable Length: 600mm
Detailed Items:
1 x front connector, 1 x rubber gasket, 1 x stainless
anti-slide clip, 1 x aluminium clip, 4 x 304 stainless screws

DIY IP67 End Connector Kit
Detailed Items:
1 x end connector, 1 x rubber gasket, 1 x stainless
anti-slide clip, 1 x aluminium clip, 4 x 304 stainless screws

DIY IP67 Splice Connector Kit
Connection side: Right to Left
Cable Length: 300mm
Detailed Items:
1 x end connector, 2 x rubber gasket, 2 x stainless
anti-slide clip, 2 x aluminium clip, 8 x 304 stainless screws

Ordering Code

CT - F - CON - R







CT - F - CON - L







CT - EC





CT - CON

Use of below accessories will ensure an IP rating of IP68.
Below accessories can only be assembled by the supplier, prior to ordering.

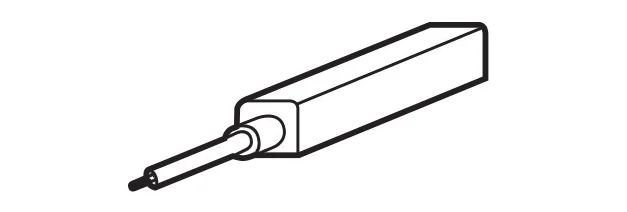

Moulded Right Connector
Cable output side: Right
Cable Length: 600mm
Moulded End Cap
Seamless joint connection
Protection Rating IP68

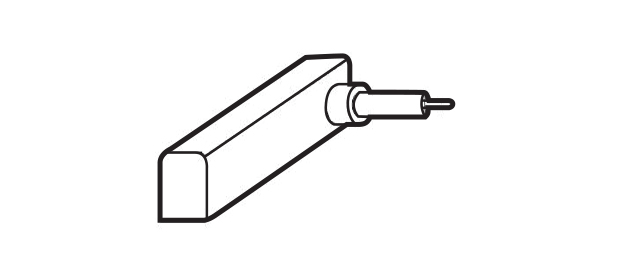

Moulded Left Connector
Cable output side: Left
Cable Length: 600mm
Moulded End Cap
Seamless joint connection
Protection Rating IP68

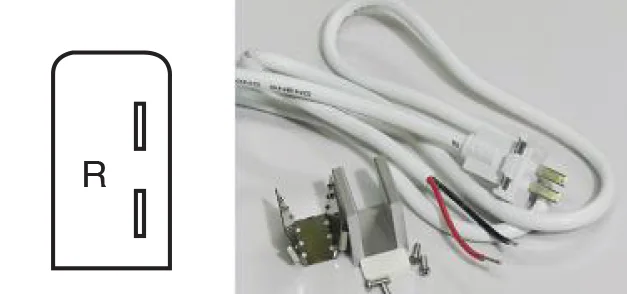

Moulded Twin Connector
Cable output side: Left and Right
Cable Length: 300mm with female and
male connectors
Moulded End Cap
Seamless joint connection
Protection Rating IP68

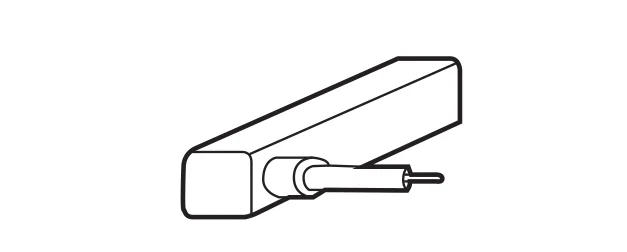

Moulded Direct Connector
Cable output side: Direct
Cable Length: 600mm
Moulded End Cap
Protection Rating IP68

CT - M - S - CON - R






CT - M - S - CON - L






CT - M - S - CON - D







CT - M - F - CON - S
